P3.9 transparent glass led display
Pixel:3.9-7.8
Brightness:3000cd/sqm
Cabinet size:1000mm*500mm
| Design &Features | |
| Features | Benefits |
| Unparalleled Transparency | Greater than 75%-95% transparency at highest resolution.Unnoticeable when viewing from five meters or more |
| Modular design | Standard size can be used to create larger displays,using the right resolution for the job |

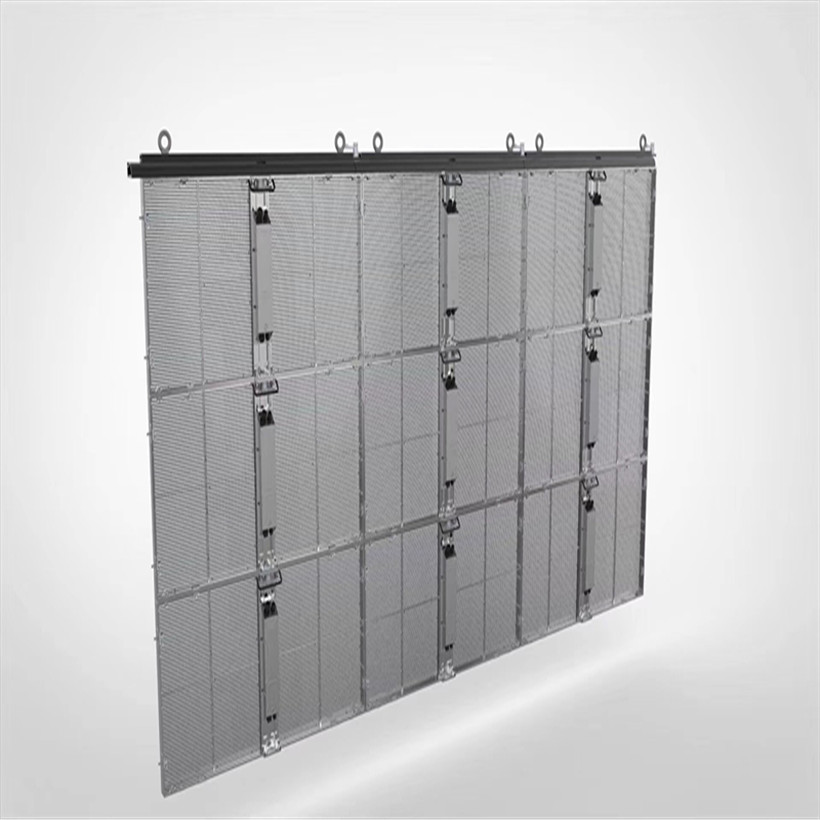

| Easy setup and installation | Modular panels can snap together easily by hand on support frames. |
| Light weight and easy transporation | Weight is 14kg/㎡（including all structure and power supply),it is half of the weigeht of a normal LED Displays. |
| High brightness and energy efficiency | LED uses much less energy than projection and LCD,but with enough brightness to work in full daylight |
| Easy to maintainance and updating | Long life expectancy as replacement LED strips are swapped in easily without having to replace the entire panel. |
Parameters:
| Pixel Configuration | 3.91-7.82 |
| Using environment | Indoor |
| Pixel Density(Pixels/m²) | 32768 |
| Module Size(mm) | 500×125 |
| Module pixel | 128*16 |
| Brightness(cd/m²) | ≥1200 |
| Method scanning | 16S |
| Transparancy rate | ＞50% |
| Gray Scale | 14bit |
| Viewing Angle(H/V) | H:110/V:110 |
| Cabinet Size(mm) | 1000×500 |
| Cabinet weight | 7.5KG |
| Grayscale Level | ≥1920 |
| Operation Power | AC110~240 50/60Hz |
| Max Input Power(W/m²) | 320 |
| Average Input Power(W/m²) | 96 |
| Lifespan(H) | 100,000 |
| IP grade | IP23 |
