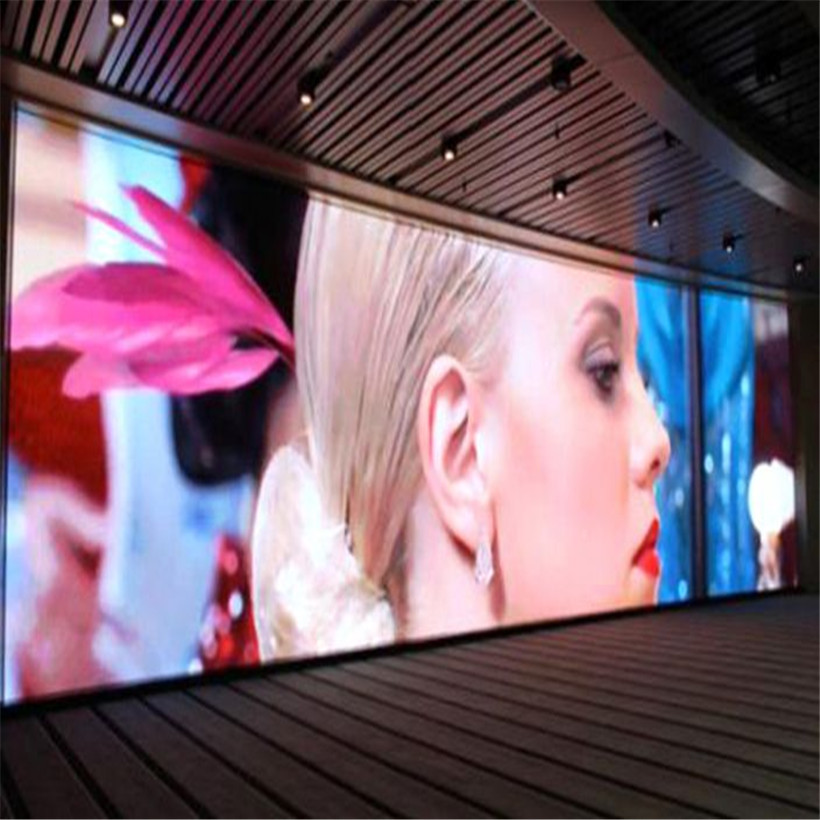

Small pitch HD P1.56 led display
Pixel:P1.56
Density:410900pixels/sqm

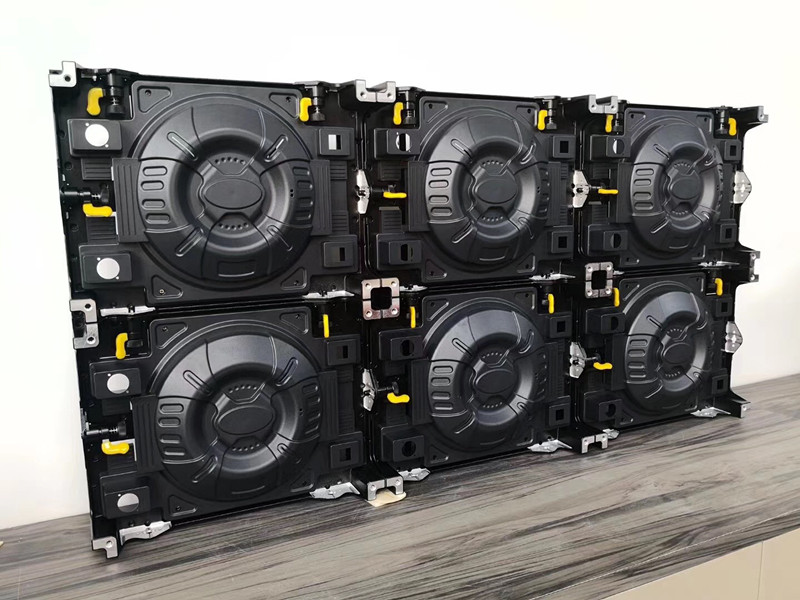

Cabinet size:400mm*300mm
Parameters:
| Pixel Configuration | 1.56 |
| Using environment | Indoor |
| Pixel Density(Pixels/m²) | 410900 |
| Module Size(mm) | 200×150 |
| Module pixel | 64*32 |
| Brightness(cd/m²) | ≥2000 |
| Method scanning | 54S |
| Gray Scale | 14bit |
| Viewing Angle(H/V) | H:140/V:140 |
| Cabinet Size(mm) | 400*300 |
| Cabinet Material | Diecasting alumimum |
| Cabinet weight | 6 |
| Grayscale Level | ≥1200 |
| Operation Power | AC110~240 50/60Hz |
| Max Input Power(W/m²) | 1000 |
| Average Input Power(W/m²) | 700 |
| Lifespan(H) | 100,000 |
| IP grade | IP23 |
